DrawingML Shapes

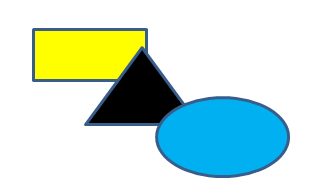

A set of shapes can be grouped together with a <xdr:grpSp> (or <p:grpSp>) element. That group of shapes has a set of properties (within a <grpSpPr>), and one of the properties can be a fill. The individual shapes within the shape group can specify their own fill types or they can use the fill type of the group by specifying <a:grpFill/> for their fill. Below is an example of three shapes grouped together within a spreadsheet. The group fill is specified as a solid fill of black. The triangle uses the group fill, as specified with the <a:grpFill/> element for the triangle shape's fill within its <spPr>. The rectangle and oval both specify their own solid fills.
