Styles

The style information for a shape is specified with the <p:style> element within the <p:Sp>. Note at the outset that the <p:style> element is not within the main drawingML namespace; instead it is either in the presentationML main namespace (prefix p) or in the spreadsheetDrawing namespace (prefix xdr). Four characteristics of a shape are specified with this element: the type of fill, the type of outline, the effects to be applied, and the font. None of the style characteristics are actually defined within the <p:style> element, however. Instead, the element only contains references to the style details found within the theme part. The corresponding elements containing the references are within the main drawingML namespace and are: <a:effectRef>, <a:fillRef>, <a:fontRef>, and <a:lnRef>. Each of these reference elements contains an idx attribute, which is an index to the corresponding lists of properties within the theme part. So it is important to first understand a bit about the theme part.

The core of the theme part is the <a:themeElements> element,which contains most of the style information for the theme in three child elements: <a:clrScheme>, <a:fmtScheme>, and <a:fontScheme>. The <a:fmtScheme> contains four child elements: <a:bgFillStyleLst>, <a:effectStyleLst>, <a:fillStyleLst>, and <a:lnStyleLst>. The four ref child elements within <p:style> refer to the child elements of the <a:themeElements> element within the theme part. Below is first a sample <p:style> element within a shape definition in a presentation slide, followed by an outline of the theme part. The colors indicate reference relationships.

<p:style>
<a:lnRef idx="2">
<a:schemeClr val="accent1">
<a:shade val="50000"/>
</a:schemeClr>
</a:lnRef>

<a:fillRef idx="1">
</a:fillRef>

<a:effectRef idx="0">
<a:schemeClr val="accent2"/>
</a:effectRef>

<a:fontRef idx="minor">
<a:srgbClr val="00B0F0"/>
</a:fontRef>
</p:style>

<a:theme xmlns:a="http://schemas.openxmlformats.org/drawingml/2006/main" name="Office Theme">
<a:themeElements>
<a:clrScheme name="Office">
. . .
</a:clrScheme>
<a:fontScheme>
<a:majorFont>
. . .
</a:majorFont>
<a:minorFont>
. . .
</a:minorFont>
</a:fontScheme>
<a:fmtScheme>
<a:fillStyleLst>
. . .
</a:fillStyleLst>
<a:lnStyleLst>
. . .
</a:lnStyleLst>
<a:effectStyleLst>
. . .
</a:effectStyleLst>
<a:bgFillStyleLst>
. . .
</a:bgFillStyleLst>
</a:fmtScheme>
</a:themeElements>
. . .
</a:theme>

Fill

As noted above, the fill style is specified by the <a:fillRef> element within the style element. The <a:fillRef> references a child element of either the <a:fillStyleLst> or <a:bgFillStyleLst> in the theme part. The particular child element is specified by an index as given in the idx attribute on <a:fillRef>. A value of 0 or 1000 indicates no background; values 1-999 refer to the index of a fill style in <a:fillStyleLst>; and values 1001 and above refer to the index of a background fill style within <a:bgFillStyleLst>. For example, in the sample above, we have <a:fillRef idx="1">, so it refers to the first fill style within the <a:fillStyleLst> of the theme part. Below is the corresponding <a:fillStyleLst> and shape. The first fill style is a solid fill using the theme color accent2, which is defined within the <a:clrScheme> of the theme part. (For more on fills, see Shape Fill.)

<a:theme xmlns:a="http://schemas.openxmlformats.org/drawingml/2006/main" name="Office Theme">
<a:themeElements>
<a:clrScheme name="Office">
. . .
<a:accent2>
<a:srgbClr val="C0504D"/>
</a:accent2>
. . .
</a:clrScheme>
. . .
<a:fmtScheme>
<a:fillStyleLst>
<a:solidFill>
<a:schemeClr val="accent2"/>
</a:solidFill>
. . .
</a:fillStyleLst>
. . .
</a:fmtScheme>
</a:themeElements>
. . .
</a:theme>

Shape with text - styles - fill

Line

The line style is specified by the <a:lnRef> element within the style element. The <a:lnRef> references a child element of the <a:lnStyleLst> element in the theme part. The particular child element is specified by an index as given in the idx attribute on <a:lnRef>. (For more on outlines, see Shape Outline.) In the sample below, the shape references the second line style found within the theme: <a:lnRef idx="2">.

<a:theme xmlns:a="http://schemas.openxmlformats.org/drawingml/2006/main" name="Office Theme">
<a:themeElements>
<a:clrScheme name="Office">
. . .
</a:clrScheme>
. . .
<a:fmtScheme>
. . .
<a:lnStyleLst>
<a:ln . . .>
. . .
</a:ln>
<a:ln w="254000" cap="flat" cmpd="dbl" algn="ctr">
<a:solidFill>
<a:srgbClr val="000000"/>
</a:solidFill>
<a:prstDash val="dot"/>
</a:ln>
. . .
</a:lnStyleLst>
. . .
</a:fmtScheme>
</a:themeElements>
. . .
</a:theme>

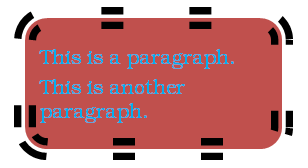

Shape with text - styles - line

Effect

The effect style is specified by the <a:effectRef> element within the style element. The <a:effectRef> references a child element of the <a:effectStyleLst> element in the theme part. The particular child element is specified by an index as given in the idx attribute on <a:effectRef>. (For more on shape effects, see Shape Effects.) In the sample below, the shape references the first effect style found within the theme: <a:effectRef idx="1">. It applies a blue shadow to the bottom of the shape.

<a:theme xmlns:a="http://schemas.openxmlformats.org/drawingml/2006/main" name="Office Theme">
<a:themeElements>
<a:clrScheme name="Office">
. . .
</a:clrScheme>
. . .
<a:fmtScheme>
. . .
<a:effectStyleLst>
<a:effectStyle>
<a:effectLst>
<a:outerShdw blurRad="400000" dist="200000" dir="5400000" rotWithShape="0">
<a:srgbClr val="0000FF"/>
</a:outerShdw>
</a:effectLst>
</a:effectStyle>
. . .
</a:effectStyleLst>
. . .
</a:fmtScheme>
</a:themeElements>
. . .
</a:theme>

Shape with text - styles - effect

Font

The font style is specified by the <a:fontRef> element within the style element. The <a:fontRef> references a child element of the <a:fontScheme> element in the theme part. The particular font is specified by an index as given in the idx attribute on <a:fontRef>. The <a:fontRef> element also specifies a choice of color. In the sample below, the shape references the minor latin font found within the theme, with the color white.

<p:style>
. . .
<a:fontRef idx="minor">
<a:srgbClr val="FFFFFF"/>
</a:fontRef>
</p:style>

<a:theme xmlns:a="http://schemas.openxmlformats.org/drawingml/2006/main" name="Office Theme">
<a:themeElements>
. .
<a:fontScheme name="Office">
<a:majorFont>
. . .
</a:majorFont>
<a:minorFont>
<a:latin typeface="Courier"/>
. . .
</a:minorFont>
</a:fontScheme>
. . .
</a:themeElements>
. . .
</a:theme>

Shape with text - styles - font
