Cell Margin Default

The default table cell margin (that is, the distance between the cell contents and the cell borders) is specified with the <w:tblCellMar> element. Compare with tblCellSpacing. This setting can be overridden at the cell level using the tcMar element within the cell's properties.

<w:tblPr>
<w:tblCellMar>
<w:top w:w="720" w:type="dxa"/>
<w:start w:w="432" w:type="dxa"/>
<w:bottom w:w="0" w:type="dxa"/>
<w:end w:w="144" w:type="dxa"/>
</w:tblCellMar>
</w:tblPr>
Reference: ECMA-376, 3rd Edition (June, 2011), Fundamentals and Markup Language Reference § 17.4.43.
Word 2007 Example:
Table Cell Margin Default

Elements:

ElementDescription
top Specifies the amount of space left between the top of the cell contents and the top border of all cells. If omitted, the table will have no top padding unless a cell overrides the default.
Reference: ECMA-376, 3rd Edition (June, 2011), Fundamentals and Markup Language Reference § 17.4.76.
bottom Specifies the amount of space left between the bottom of the cell contents and the border of all cells. If omitted, the table will have no bottom padding unless a cell overrides the default.
Reference: ECMA-376, 3rd Edition (June, 2011), Fundamentals and Markup Language Reference § 17.4.5.
start Specifies the amount of space displayed to the left for left-to-right tables and right for right-to-left tables. If omitted, the table will have 115 twentieths of a point (0.08 inches) of left padding unless a cell overrides the default.

Note: In the previous version of the standard, this element was left.

Reference: ECMA-376, 3rd Edition (June, 2011), Fundamentals and Markup Language Reference § 17.4.35.
end Specifies the amount of space displayed on the right for left-to-right tables and left for right-to-left tables. If omitted, the table will have 115 twentieths of a point (0.08 inches) of right padding unless a cell overrides the default.

Note: In the previous version of the standard, this element was right.

Reference: ECMA-376, 3rd Edition (June, 2011), Fundamentals and Markup Language Reference § 17.4.11.

Attributes:

The attributes for the above table cell margin elements are:

AttributeDescription
w Specifies the value of the width of the margin. If omitted, the value is assumed to be 0;
type Specifies the units of the width (w) property. Possible values are:
  • dxa - Specifies that the value is in twentieths of a point (1/1440 of an inch).
  • nil - Specifies a value of zero

If the attribute is omitted, its value is assumed to be dxa.



Related Open Document Format (ODF) Property:

Cell margins are not set in the <style:table-cell-properties> element, but on the style for the paragraph within the cell. See Table Cell Properties - Margins for more details.

Related HTML/CSS Property:

The padding property is applied at the cell level:
td {
padding-bottom:0px;
padding-top:25px;
padding-left:15px;
padding-right:10px;
}

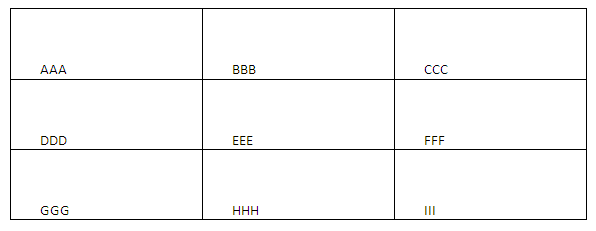

CSS Example:
AAA BBB CCC
DDD EEE FFF
GGG HHH III
