Wordprocessing Tables

Related Open Office/ODF Discussion
Related HTML/CSS Discussion
Table Cell Properties - Width

The preferred width of a single table cell is specified with the <w:tcW> element within the <tcPr> element. All widths in a table are considered preferred because widths of columns can conflict and the table layout rules can require a preference to be overridden. If this element is omitted, then the cell width is of type auto.

<w:tcPr>
<w:tcW w:type="pct" w:w="33.3%"/>
</w:tcPr>
Reference: ECMA-376, 3rd Edition (June, 2011), Fundamentals and Markup Language Reference § 17.4.68.
Word 2007 Example:

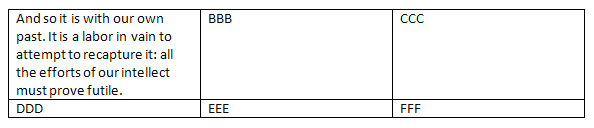

The preferred width for the table below (<w:tblW>) is set to auto. The first cell is set to 33.3%, as in the sample above. The samples below show the effects of varying content within the cell.

Table Cell Properties - Width
Table Cell Properties - Width

Attributes:

The attributes are:

AttributeDescription
w Specifies the value of the preferred width of the cell. If omitted, the value is assumed to be zero.

Note: The 2006 version of the OOXML standard specified that the value was to be a decimal. When type="pct", the value was interpretted as fifths of a percent, so 4975=99.5%, and no % symbol was included in the attribute. In the 2011 version the value can be either a decimal or a percent, so a % symbol should be included when type="pct".

type Specifies the units of the width (w) property. Possible values are:
  • auto - Specifies that width is determined by the overall table layout algorithm.
  • dxa - Specifies that the value is in twentieths of a point (1/1440 of an inch).
  • nil - Specifies a value of zero.
  • pct - Specifies a value as a percent of the table width.


Related Open Document Format (ODF) Property:

The width of a cell is set with the style:column-width attribute on the <style:table-column-properties> element for the style applied to the column for the cell. A value is a positive number.

There is also a style:rel-column-width attribute which specifies a relative width of a column. A value is a number followed by a * (U+002A, ASTERISK).

Reference: Open Document Format for Office Applications Version 1.2 (May, 2011) §§ 17.16 and 20.247.
<style:style style:name="Table1.A" style:family="table-column">
<style:table-column-properties style:column-width="0.75in" style:rel-column-width="1080*"/>
</style:style>

Related HTML/CSS Property:

<table style=" width: auto;">
<tr>
<td style="width:70%;">And so it is ...</td>
</tr>
. . .
</table>
CSS Example:
And so it is with our own past. It is a labor in vain to attempt to recapture it: all the efforts of our intellect must prove futile. BBB CCC
DDD EEE FFF
GGG HHH III

<table style=" width: auto;">
<tr>
<td style="width:70%;">And so it is ...</td>
</tr>
. . .
</table>
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA BBB CCC
DDD EEE FFF
GGG HHH III
