Wordprocessing Tables

Related Open Office/ODF Discussion
Related HTML/CSS Discussion
Row Properties

Row-level properties are specified in <trPr>. Each property is a child element of <trPr>, and they affect all cells in the row, though they can be overridden by cell-level properties.

<w:trPr>
<w:trHeight w:val="1440" w:hRule="exact"/>
<w:jc w:val="end"/>
</w:trPr>
Reference: ECMA-376, 3rd Edition (June, 2011), Fundamentals and Markup Language Reference § 17.4.82.

Note: Many properties which one might regard as row properties, such as borders, width, and shading, are not defined inside of the <trPr> element. For example, a table row <tr> may not contain a border definition inside its <trPr> element--only tables and tables cells may specify borders (<tblBorders> and <tcBorders>).

Instead, a row may define an exception to the table-level borders using the <tblPrEx> element. Other properties are defined at the table cell level. See Table Properties and Table Property Exceptions for table and other row properties (table property exceptions).

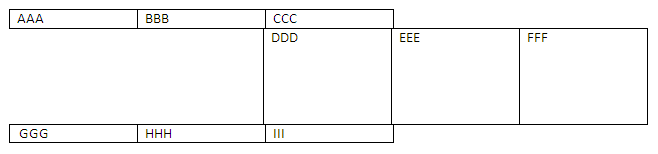

Word 2007 Example:
Table Row Properties

The most commonly used properties are shown below:

Elements/Properties:

ElementDescription
cantSplit If present, it prevents the contents of the row from breaking across multiple pages by moving the start of the row to the start of a new page. If the contents cannot fit on a single page, the row will start on a new page and flow onto multiple pages.
Reference: ECMA-376, 3rd Edition (June, 2011), Fundamentals and Markup Language Reference § 17.4.6.
hidden Hides the entire row. (Note, however, that applications can have settings that allow hidden content to be displayed.)
Reference: ECMA-376, 3rd Edition (June, 2011), Fundamentals and Markup Language Reference § 17.4.20.
jc Specifies the alignment of the row with respect to the text margins in the section. Note that this will only be apparent if the table does not have the same width as the document margins, as in the example above.

The only attribute is val. The possible values for val are:

  • center

  • start

    Note: In the previous version of the standard, this element was left.

  • end

    Note: In the previous version of the standard, this element was right.

Reference: ECMA-376, 3rd Edition (June, 2011), Fundamentals and Markup Language Reference § 17.4.28.
tblCellSpacing

Specifies the default cell spacing (space between adjacent cells and the edges of the table) for cells in the row. E.g., <w:tblCellSpacing w:w="144" w:type="dxa"/>

Table Cell Spacing

The attributes are:

  • w -- Specifies the width of the spacing.
  • type -- Specifies the units of the width attribute above. If omitted, the value is assumed to be dxa (twentieths of a point). Other possible values are nil. Note that you can specify auto or pct (width in percent of table width), but if you do, the width value will be ignored.
Reference: ECMA-376, 3rd Edition (June, 2011), Fundamentals and Markup Language Reference § 17.4.44.
tblHeader Specifies that the current row should be repeated at the top each new page on which the table is displayed. E.g, <w:tblHeader />. This can be specified for multiple rows to generate a multi-row header. Note that if the row is not the first row, then the property will be ignored. This is a simple boolean property, so you can specify a val attribute of true or false, or no value at all (defalut value is true).
Reference: ECMA-376, 3rd Edition (June, 2011), Fundamentals and Markup Language Reference § 17.4.50.
trHeight Specifies the height of the row. E.g, <w:trHeight w:hRule="exact" w: val="2189" />. If omitted, the row is automatically resized to fit the content.

The attributes are:

  • hRule -- Specifies the meaning of the height. Possible values are atLeast (height should be at leasat the value specified), exact (height should be exactly the value specified), or auto (default value--height is determined based on the height of the contents, so the value is ignored).
  • val -- Specifies the row's height, in twentieths of a point.

Note: The height of a row typically cannot be reduced below the size of the end of the cell marker. This prevents table rows from disappearing when they have no content. However, this makes it impossible to use a row as a border by shading its cells or putting an image in the cells. To overcome this problem, use the <w:hideMark /> element within the <w:tcPr /> of each cell in the row. See Hide End of Table Cell Mark

Reference: ECMA-376, 3rd Edition (June, 2011), Fundamentals and Markup Language Reference § 17.4.81.


Related Open Document Format (ODF) Property:

Table row properties are specified in the <style:table-row-properties> element.

<style:style style:name="Table1.1" style:family="table-row">
<style:table-row-properties style:min-row-height="0.4896in"/>
</style:style>
Reference: Open Document Format for Office Applications Version 1.2 (May, 2011) § 17.17.

The <style:table-row-properties> element can have the following attributes:

AttributesDescription
fo:background-color

Specifies a color for the background of the row.

fo:break-after

Specifies a break after the row. Possible values are auto, column, and page.

fo:break-before

Specifies a break before the row. Possible values are auto, column, and page.

fo:keep-together

Specifies when the row should be kept with the table. Possible values are auto and always.

style:min-row-height

Specifies a fixed minimum height for the row.

style:row-height

Specifies a fixed row height.

style:use-optimal-row-height

Specifies that a row height should be recalculated automatically if content in the row changes.

Note that <style:table-row-properties> can also contain a <style:background-image> element.

Related HTML/CSS Property:

<table cellspacing="20px" style="width: 100%; border-collapse:separate;">
<thead>
<tr>
<th>First column</th>
<th>Second Column</th>
<th>Third Colum</th>
</tr>
</thead>
<tbody>
<tr> . . .</tr>
<tr style="height:50px; text-align:right;"> . . .</tr>
<tr> . . .</tr>
<tr style="display: none;"> <td>JJJ</td><<td>KKK</td><<td>LLL</td></tr>
</tbody>
</table>

Note that Cellspacing cannot be applied at the row level in HTML.

CSS Example:
First column Second column Third column
AAA BBB CCC
DDD EEE FFF
GGG HHH III
JJJ KKK LLL
